Single Facer C Flute Tungsten Carbide Corrugating Rolls

Brand Name : YH

Model Number : C-2200-340

Place of Origin : Made in China

MOQ : 1set

Price : $10000-$35000/set

Payment Terms : T/T

Supply Ability : 1500 sets per year

Delivery Time : 60-90 days

Packaging Details : Wooden Boxes

Material : 50CrMo precision forged alloy steel

Coating : 60-80μm, American Praxair super hard 1342 tungsten cabide powder

Width : 2200mm×Φ340mm

Heating treatment : Intermediate frequency quenching

Hardness : >HRC58 after hardening

Flute type : C flute

Warranty : 30million linear meters or 1 year, whichever comes first

Finishing : Ra <0.6μm

Certification : ISO9001

Contact Now

C Flute Tungsten Carbide Corrugating Rolls For Single Facer Corrugated Machine

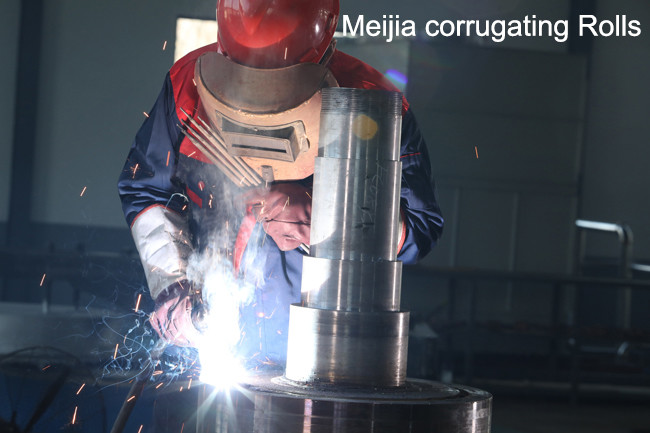

1.Precision Welding Make Inseparable

The roll barrel and shafts shrink fit together. After welding do tempering to reduce stress. We do steam leak detction too.

Single Facer C Flute Tungsten Carbide Corrugating Rolls

2. Advanced Equipments

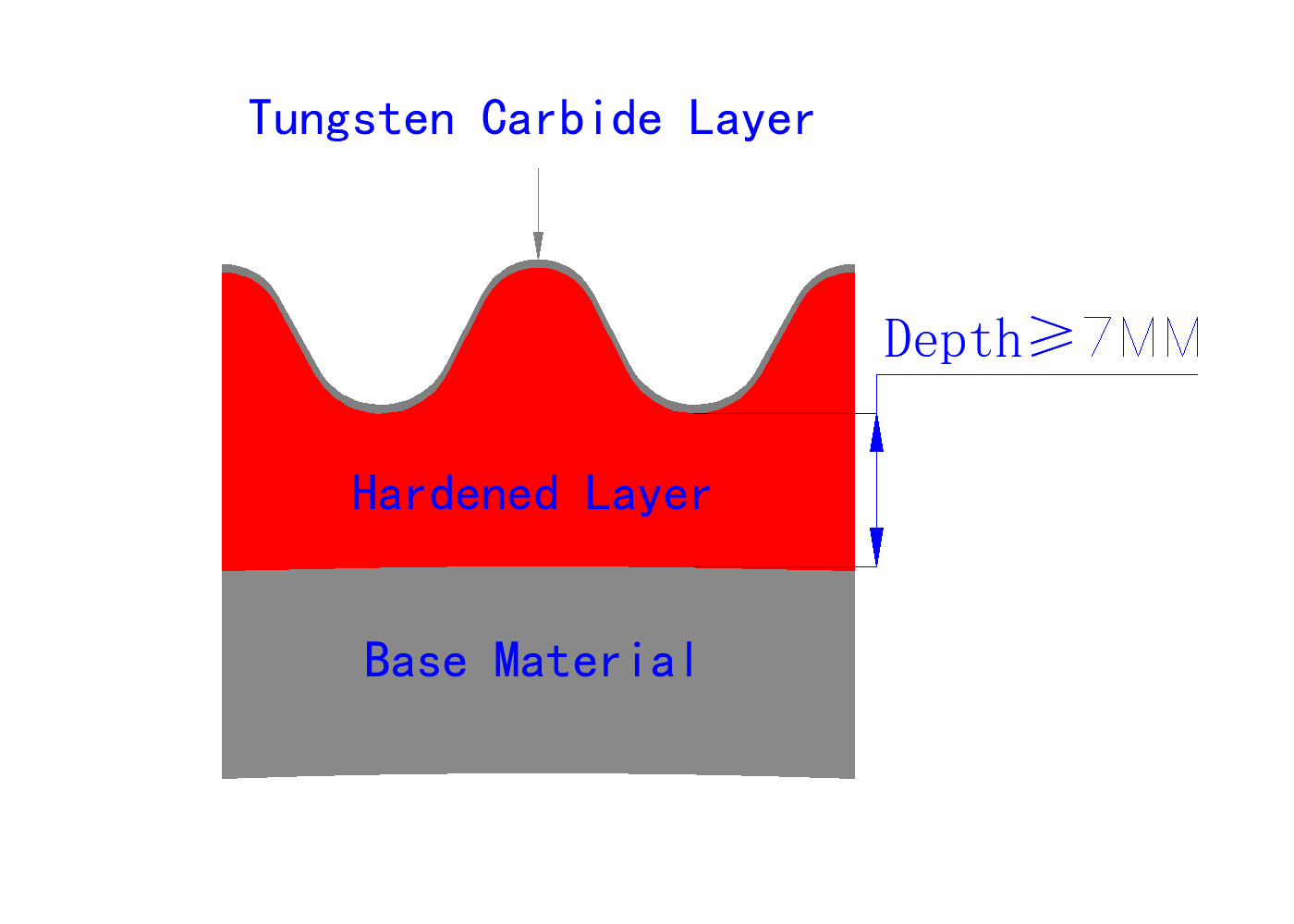

►Harden the tungsten carbide corrugating roll surface, make the hardness more than HRC58, harden depth 8-12mm.

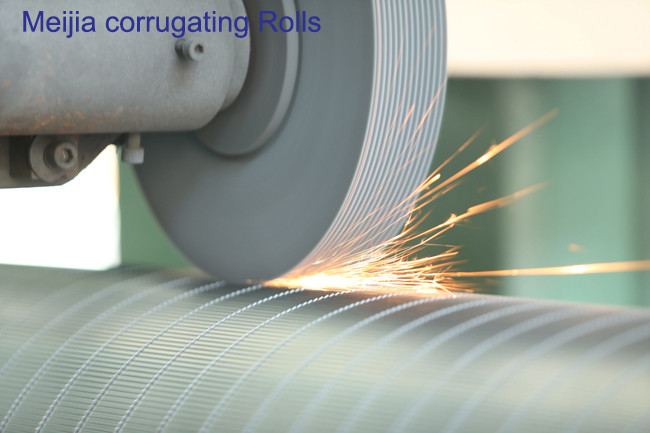

►Special grinding machine for corrugating rolls with Siemens control system.

►Sand blasting make a rough surface of the roll. It's to increase adhesion of TC powder.

►American Praxair JP8000 HVOF tungsten carbide plating machine is the most advanced in the world.

►Smooth surface can extend the life span of tungsten carbide corrugating rolls.

Single Facer C Flute Tungsten Carbide Corrugating Rolls

Intermediate frequency quenching machine

Single Facer C Flute Tungsten Carbide Corrugating Rolls

Sand blasting machine

Single Facer C Flute Tungsten Carbide Corrugating Rolls

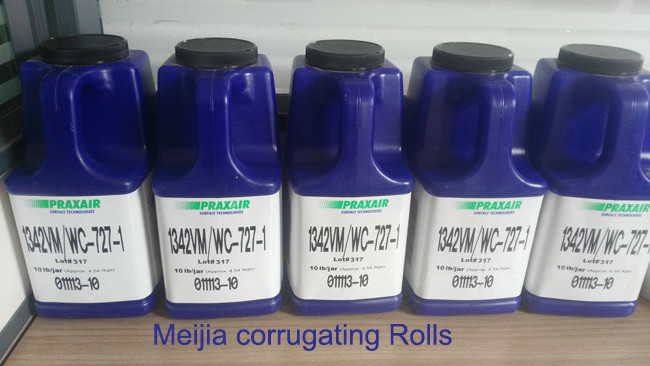

Praxair 1342 super hard tungsten carbide powder

Single Facer C Flute Tungsten Carbide Corrugating Rolls

Polishing machine

3.QC

After grinding, plating,polishing and finished products, we would do flute profile test and paper test. We make sure every set of corrugating rolls 100% qualified.

Single Facer C Flute Tungsten Carbide Corrugating Rolls

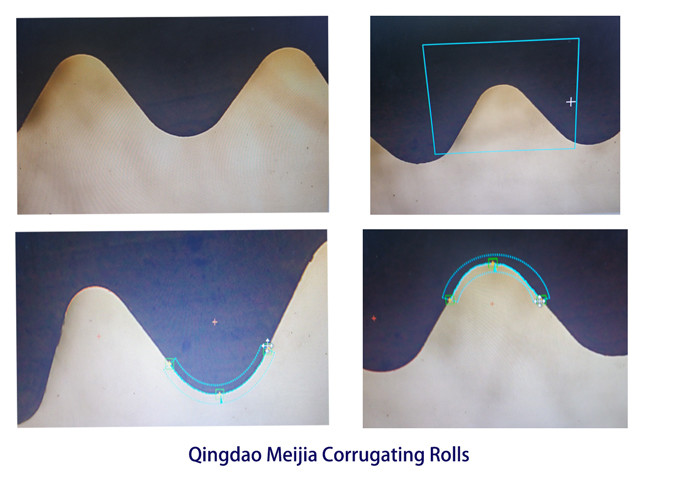

Test flute profile with computer and projector

4. Package

Single Facer C Flute Tungsten Carbide Corrugating Rolls
